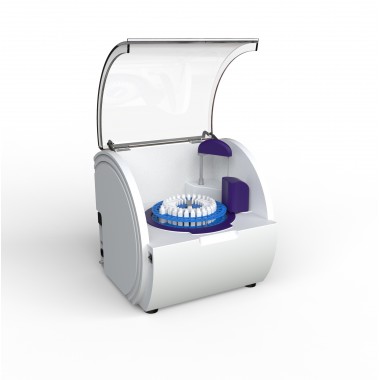

XIN RUI MEDICAL EQUIPMENT TECHNOLOGY CO., LTD

Technical Parameters

Type: Full automatic/random option/emergency first

Test Speed: 210tests/hour

Test method : End point, Kinetic, Fixed time, support STAT

Cleaning Method:With 7 segment 15 steps auto-washing to guaranty cleaning and avoid carryover.

Wavelength: 340nm-630nm,customizable.

Reagent volume: 20~400ul, step by 1 ul.

Sample volume: 2~40ul, step by 1ul

Reagent tray: 54 reagent position, support various primary sample tube

Sample tray: 45 sample position , support various primary sample tube

Reaction tray: Direct solid-heating system, 135 reaction cuvettes with auto-washing function ,minimum reaction volume 140ul.

Alarm:Automatic alarm for water lacking and waste water overflow(optional)

Light source: Halogen tungsten lamp. Life is more than 2000 hours

Absorbance: 0~4.0Abs(10mm conversion)

Resolution: 0.0001Abs

Calibration: Linear( one-point, two-point and multi-point ), Logit-log 4P,Spline

Water consumption: ≤4L/ hour

Operation System: Windows7/8, Windows XP, etc

Data storage: Auto save, auto backup.

Print format: Customized .

Power supply: A.C 100~240V , 50~60Hz , auto adaption

Dimension:600mm*580mm*630mm(Length * Width * High)
